MS-TECH Turbo G40-900 Turbocharger 860777-5003S 757707-0027 757707-0028
MODEL:
G40-900
Part Numbers:
860777-5003S
Fit Turbos:
757707-0027 757707-0028 757707-0029 757707-0030 757707-0032 757707-0033 757707-0034 757707-0035
Material of turbine wheel: Inconel 713C
Perfect balance finished.you can use it directly.
| G40-900 | Compressor | Turbine |
| | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| HP: 500-900 Disp: 2.0L-6.0L | 62mm | 88mm | 51 | 0.80 | 77mm | 70mm | 84 |
| Supercore | PN | | | | | |
| Standard Rotation | 860777-5003S | | | | | |
| Turbine Kits: G40 | PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Free Float Turbine Housing | 757707-0027 | 0.85 | V-Band | V-Band | Free Float | N |
| | 757707-0028 | 0.95 | V-Band | V-Band | Free Float | N |
| | 757707-0029 | 1.06 | V-Band | V-Band | Free Float | N |
| | 757707-0030 | 1.19 | V-Band | V-Band | Free Float | N |
| | 757707-0032 | 0.85 | T4 | V-Band | Free Float | Y |
| | 757707-0033 | 0.95 | T4 | V-Band | Free Float | Y |
| | 757707-0034 | 1.06 | T4 | V-Band | Free Float | Y |
| | 757707-0035 | 1.19 | T4 | V-Band | Free Float | Y |
| | | | | | | |
MS-TECH now have more than 1000 shaft wheel available, we are continually expanding many new replacement parts every month, More shaft wheel are currently in development with many popular parts. At the same time, we can manufacture most shaft wheel into shaft &wheel(Rotors) , If you want to know more details, Please feel free to contact us.
Our shaft wheel are widely used in Garrett, Holset,KKK,Schwitzer,Borwarger, Mitsubishi, IHI,Toyota and other turbochargers.
GT12,GT15,GT17,GT20,GT22,GT25,GT30,GT32,GT35,GT37,GT42,GT45,TA34,TA45,TA51,TB22,TB25,TB28,TB31,TB34,TB71,TBP4-180,TBP4-210, TBP4-270, T04B,T04E
HX30,HX35,HX40,HX40W,HX50,HX55,HT3B,H1C,H1E,H2C,H2D...
S200, S200G,S300,S400,S410,S2A,S3A,...
K03, K04,K14,K16,K24,K27,K27-B,K27-W,K27-2,TK27, K28, K29, K31, K36, KP35, KP39
RHB31, RHF5,RHB5,RHB6,RHC6,RHC9
TD04, TD05,TD08,TF035HM,TF035VGK
CT9, CT12,CT12B,CT20,CT26
OEM as followed:
435922-0001, 435737-0006, 435243-0001, 435243-0002, 435922-0004, 435737-0015, 451311-0014, 717360-5005, 717360-5005, 451310-0003, 451311-0002, 446905-0006, 446905-0004, 446905-0004, 446905-0001, 446905-0007, 446905-0010, 446249-0003, 441064-0001, 441064-0002, 433290-0042, 433158-0001, 433290-0004, 433298-0032, 434713-0007, 433298-0004, 433165-0004, 433165-0001, 433165-0007, 434713-0001, 434713-0005, 433298-0001, 433298-0030, 707669-0005, 707669-0010, 434883-0017, 434533-0002, 433257-0010, 434714-0009, 434533-0006, 434533-0012, 434533-0017,
704580-0003, 434715-0027, 436504-0004, 434533-0007, 434533-0009, 434533-0018, 717904-0001, 704580-0001, 434883-0001, 434883-0003, 434883-0017, 434882-0004, 434882-0072, 434882 0005, 435922-0016, 434717-0028, 434281-0018, 449587-0001, 740244-0001, 435368-0003, 740244-0001,
5303-120-5008, 5303-120-5023, 5303-120-5029, 5303-120-5015, 5303-120-5001, 5304-120-5008, 5304-120-5010, 5314-120-2101, 5314-120-2111, 5314-120-5009, 5314-120-2104,5314-120-2105,5314-120-2114,5314-120-2115,5314-120-5002,5314-120-5006, 5316-120-2101, 5316-120-2103, 5316-120-5015, 5316-120-5028, 5316-120-2106, 5316-120-2102, 5316-120-2113, 5316-120-5000, 5316-120-2113, 5316-120-5000, 5324-120-2103, 5327-120-2111, 5327-120-2109, 5327-120-2110, 5327-120-2113, 5327-120-2117, 5327-120-5005, 5327-120-5016, 5327-120-5017, 5336-120-2103, 5435-120-5000, 5435-120-5004, 5435-120-5006, 5435-120-5010,
314653, 313819, 166621, 166612, 167729, 314629, 316937, 15273, 55791, 158396, 184409, 3519336, 3522879, 3535359, 3522880, 3504344, 3504344, 3522232, 3522773, 353980, 3595129, 3595129, 3528251, 3534287, 3521033, 3521034, 3524031, 3522075, 3590433, 314653, 171231
49135-30100, 49177-30130, 49177-30300, 49189-30100, 49183-30100, 49179-30130
49179-30120, 17201-54060, 17201-54030, 17201-17010, 17201-17040, 650551-3120, 650551-3201,
5439-120-5017, 740244-0001, 3590433, 773720-0001, 407452-0004, 407452-0050, 171231, 442208-0001, 5303-120-5016 755046, 764609, 436379-0003, 17201-33010,49135-07100, 445812-0002, 5336-120-5005,
52986,55789,56180,56426,57175,61685,61986,61987,62034,62118,62687,63382,65520
3500433,3502499,3502817,3503023,3503402,3503403,3503642,3503798,3504106,3504344,3504346,
MS-TECH manufacture and sell kinds of turbochargers and spare parts. For example, turbochargers,wheel and shaft (rotors), CHRA, compressor wheel ,turbine wheel castings, turbo bearing, turbine housings, compressor housings, bearing housing, back plate, repair kits, and so on.
We also can produce according to the part number or according to your samples or drawings.
|
|

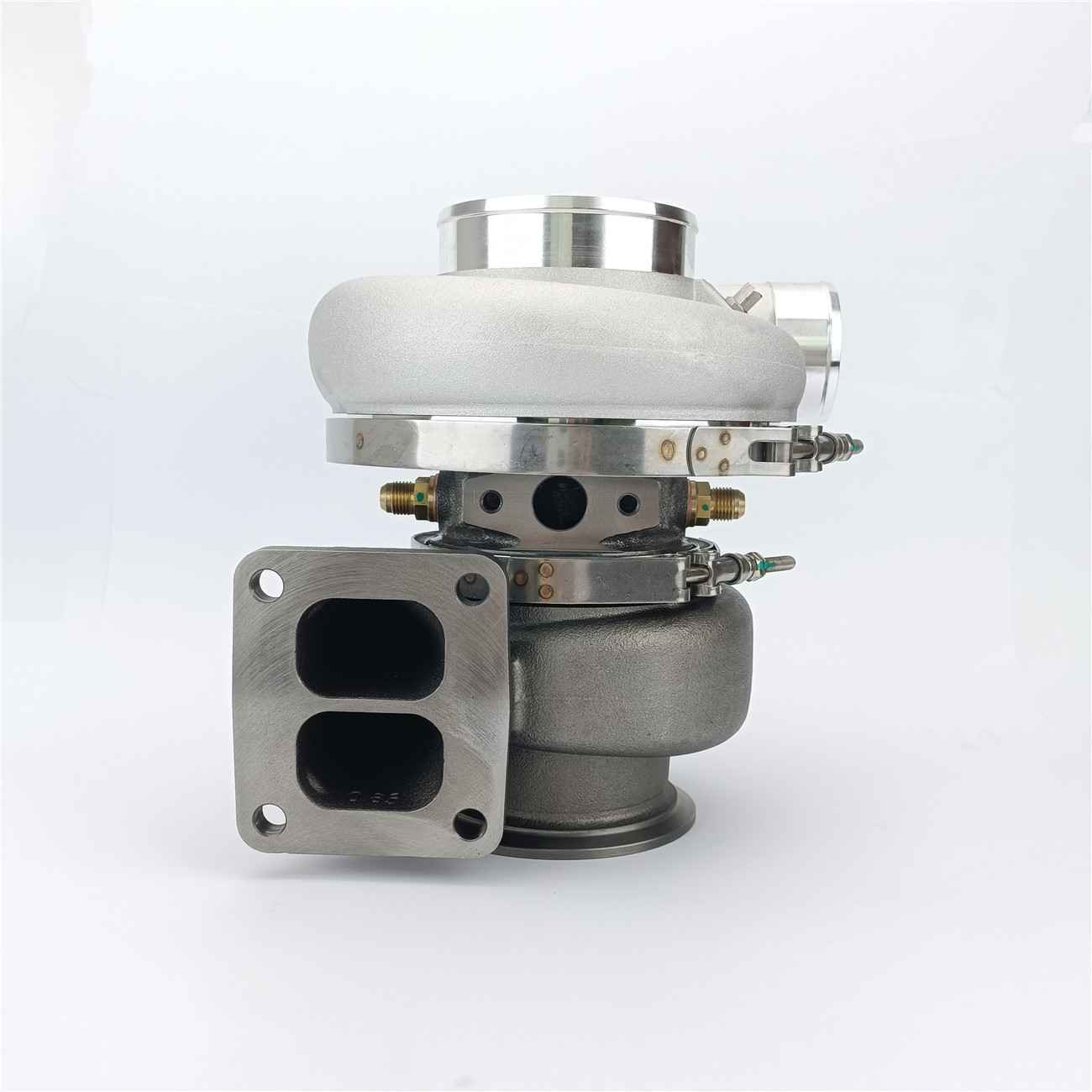

MS-TECH Turbo G40-900 Turbocharger 860777-5003S 757707-0027 757707-0028 Images
|
